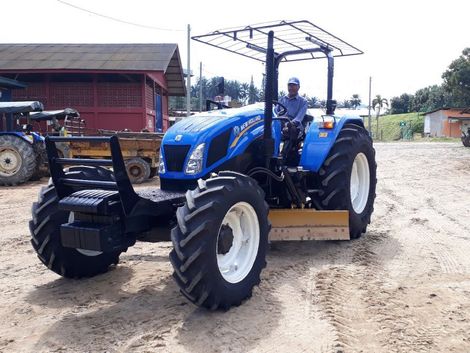

Mid – Mounted Grader
SPECIFICATION
Overall Length
2760 mm
Vertical Height
330 mm
Mould Board Thickness
150 mm
Cutting Depth
153 mm
Max Lift Up
254mm
Max Drift Left / Right
915 mm
Max Blade Lift Angle
20 Degree
Tilt Angle Adjustment
40 Degree
Max Grader Blade Hydraulic Ramp Pressure
2250 psi
